TONKAWA
To use this vessel model, include the line
         USE_VES TONKAWA
in your data file.

The crane is included in the model and it can be moved with the command:

     c_pos pitch yaw
Here pitch is the pitch angle of the crane which is nominally negative and yaw is the yaw angle (180 for stowed position).
   Main Particulars: 250 X 72 X 16 FT
   Light Ship Weight: 2079 Kips

Comments:

  • Crane is included in the model
  • Structural model not included
  • Compartmentation not included

Click Here to look at the model data file:

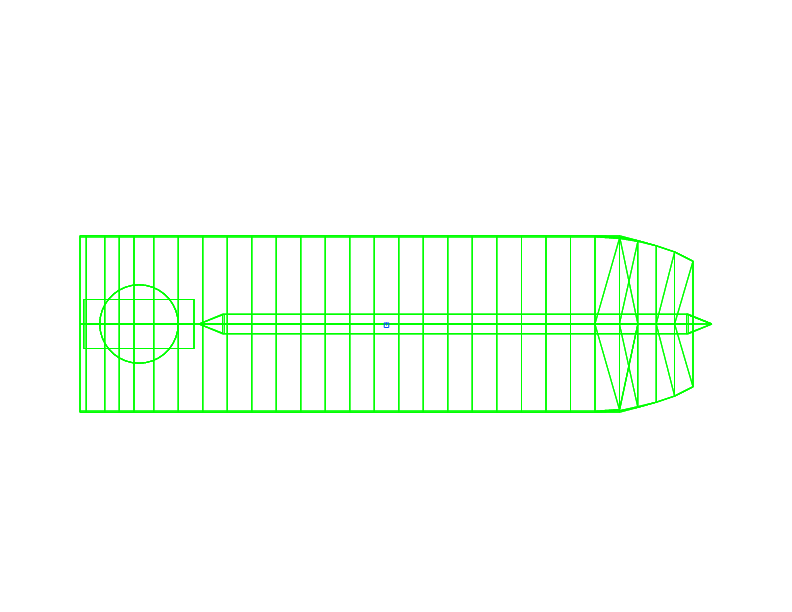

Plan:

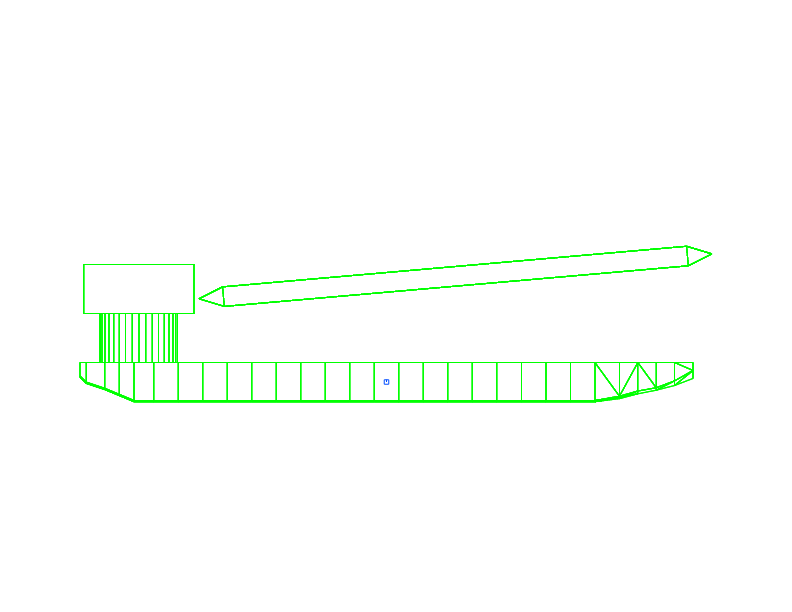

Profile:
