THIALF
To use this vessel model, include the line
         USE_VES THIALF
in your data file.

A 10,000 ton semisubmersible crane barge. The cranes can be positioned by setting the variables:

   sb_pangle   =  0
   sb_yangle   = 180
   pb_pangle   =  0
   pb_yangle   = 180
The above shows their default (stowed) position. Here, pangle ans yangle are pitch and yaw angles respectively and sb and pb are for the starboard and port cranes. The pitch angles will nominally be negative.

Comments:

  • Cranes are included in the model
  • For use in 3-D Diffraction Analysis
  • Structural model not included
  • Compartmentation not included

Click Here to look at the model data file:

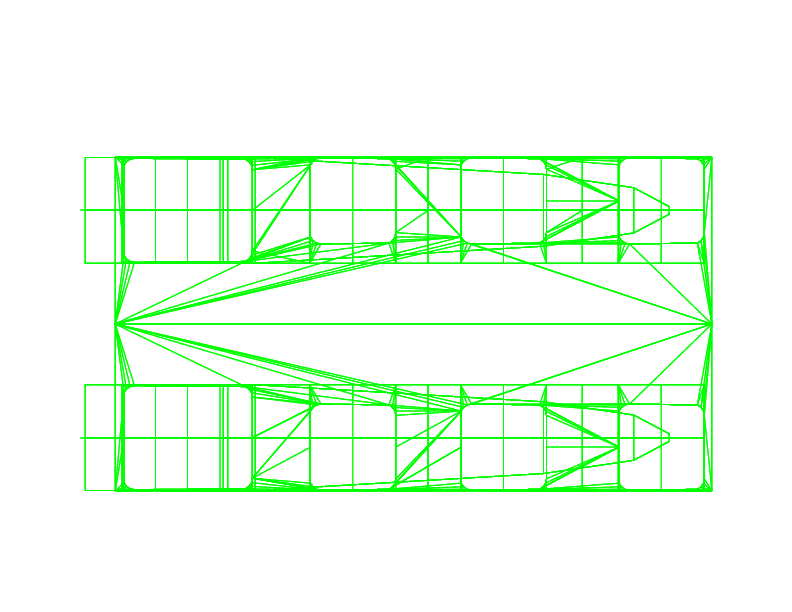

Plan:

Profile:
